Suction set Aqua Pro Fons

The high-quality suction set Aqua Pro Fons supplies your garden pump or domestic waterworks with a uniform water column. By using the pressure hose with spiral, you can effortlessly suck in liquids. The check valve prevents the backflow of the water column and thanks to the stainless steel suction strainer, coarse debris is prevented from being sucked in.

The Aqua Pro Fons suction set consists of a reinforced spiral suction hose made of high-quality, resistant PVC. The feel of the hose on the outside is slightly corrugated, but the inside of the hose is smooth to keep flow losses to a minimum.

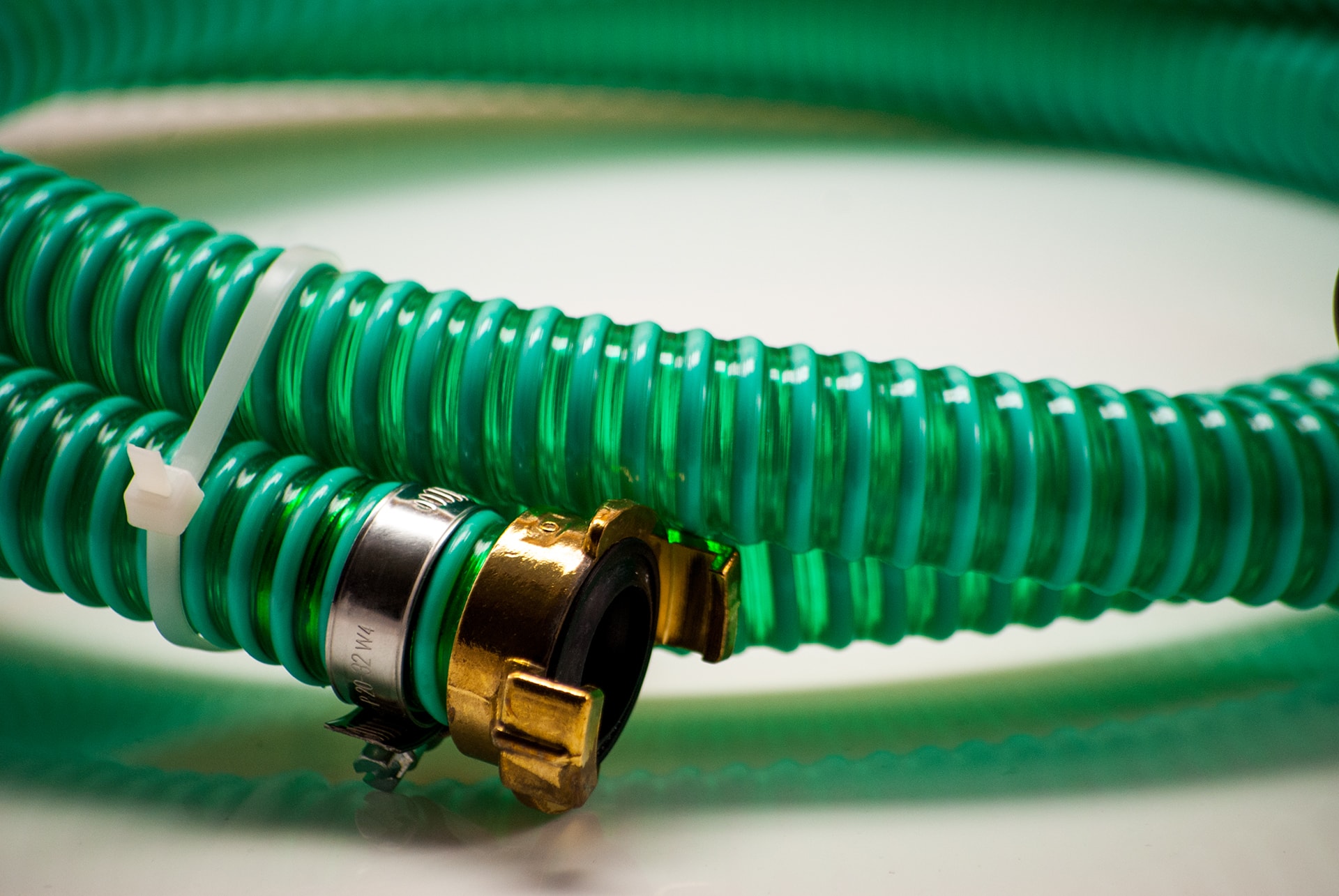

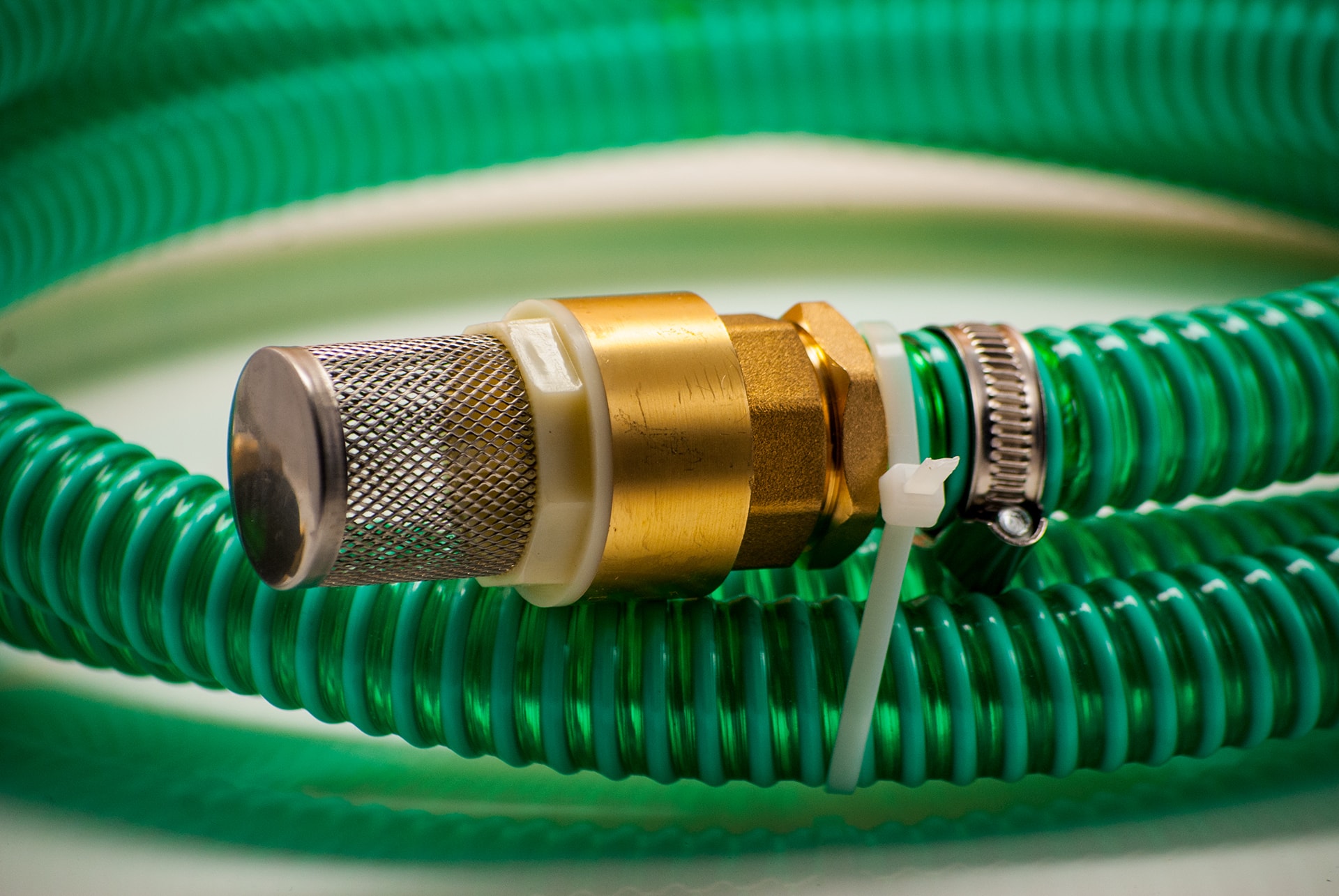

To be able to connect the hose quickly and easily, there is a quick coupling made of brass on the connection side. You can also find the matching counterparts in our store under brass fittings. At the suction side we have a brass check valve with stainless steel strainer. Here on the one hand the water column is constantly maintained and on the other hand the suction strainer fulfills a filter function. This directly prevents coarse dirt particles from entering the system. This protects your pump from damage and failure.

The suction set is available in two different diameters. On the one hand you can get the set with a 19mm spiral hose which corresponds to the selection 3/4 inch, or you decide for the system with more flow, here the hose has an inner diameter of 25mm and 1 inch brass fittings.

The Geka compatible claw coupling or quick coupling has a standard size of 40mm and can be combined with our range of quick couplings.

Thanks to the high quality materials, you can operate this suction hose up to a working pressure of 6 bar. In addition, the material has a high resistance to light acids and alkalis. This set is suitable for both drinking water and industrial water. To ensure an ideal hold of the brass fittings, they are fixed with a V4A worm drive clamp each. The temperature range is about +5 degrees up to +60 degrees Celsius.

Whether fountain, swimming pool, dirty water or for pond pumps. This suction set is well equipped for most types of water installations.
