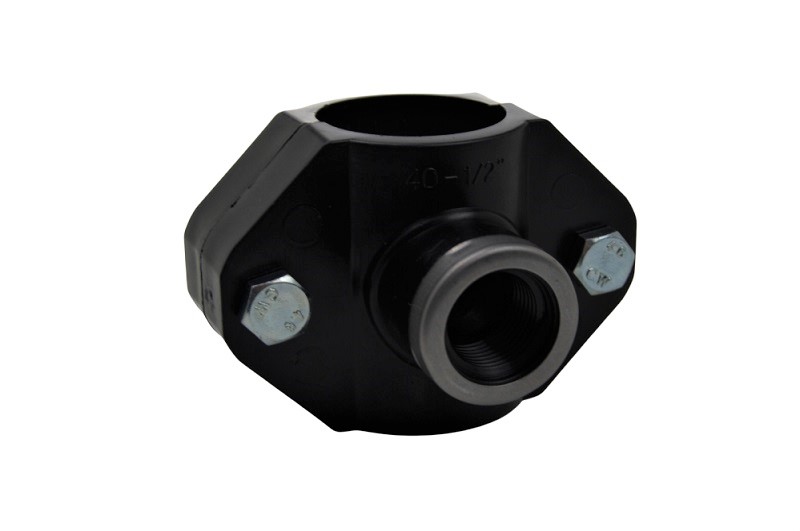

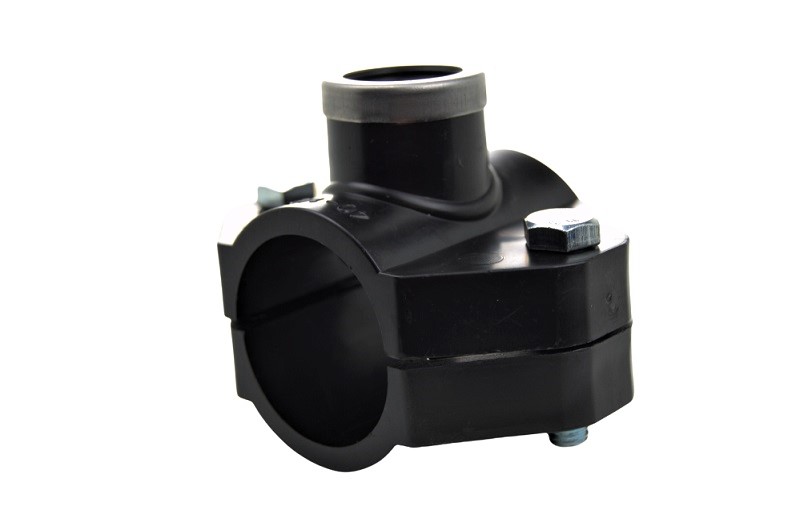

PP tapping clamp with V4A reinforcement ring- 32 mm x 1/2 Inch / Clamp x internal thread
When building irrigation pipes or existing water pipes, additional branches are often required to expand the system. These are also used to install sprinklers.
The
PP tapping clamp with V4A reinforcement ring is the ideal product here. The tapping clamp consists of a lower part, the upper part with rubber seal and internal thread outlet.
To select the right size, simply measure your pipe (outer diameter) and select the appropriate
PE tapping clamp The internal thread is specified as an inch dimension (Withworth pipe thread inch). Here you can install further threaded fittings or sprinklers directly. Don't forget that the thread has to be sealed.

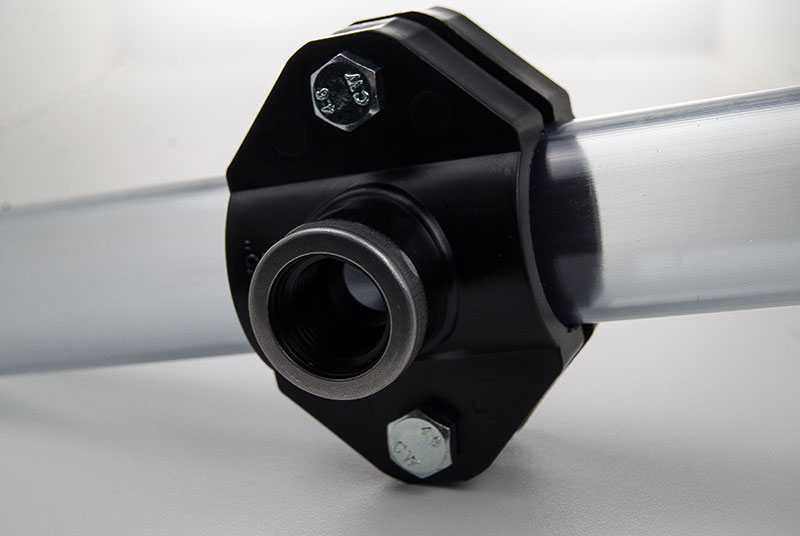

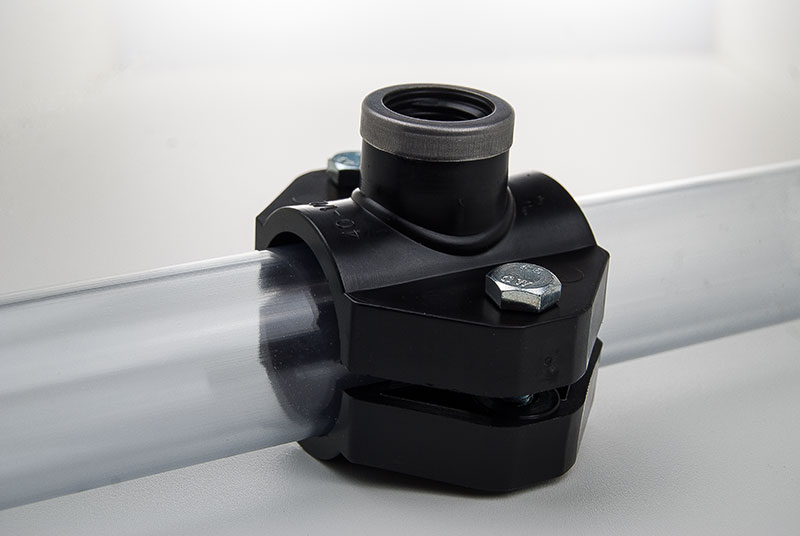

Select the place on your pipe where the clamp is to be installed and mark the place where the branch is to be created with the upper part. Then drill a hole of the appropriate size at the marked point. Now mount the upper and lower part and tighten them with the enclosed screws. Thanks to the internal rubber seal, the clamp is pressed firmly against your pipe and seals itself.
Technical Specifications
- Product: PP tapping clamp with V4A reinforcement ring Clamp x internal thread
- Size: 32 mm x 1/2 Inch
